SWARCOPLAST G601
Cold plastic
SWARCOPLAST G601 combines high performance, long service life, and low life cycle costs in a single system. The high-performance marking system impresses with its unique traffic-related properties in the field of thick coating markings - ideal for heavily trafficked roads (e.g., highways) and accident black spots.
SWARCOPLAST G601 is a resistant, dimensionally stable, thermally curing marking material based on methyl methacrylate (MMA). The composition of high-quality raw materials is particularly impressive due to its durability, which is confirmed by a BASt test certificate for 8 million crossings. In combination with SWARCO SOLIDPLUS reflective glass beads, the marking system achieves excellent visibility values at night and in wet conditions.
Product features at a glance:
- Very high degree of whiteness
- Excellent night visibility in combination with SWARCO SOLIDPLUS reflective glass beads

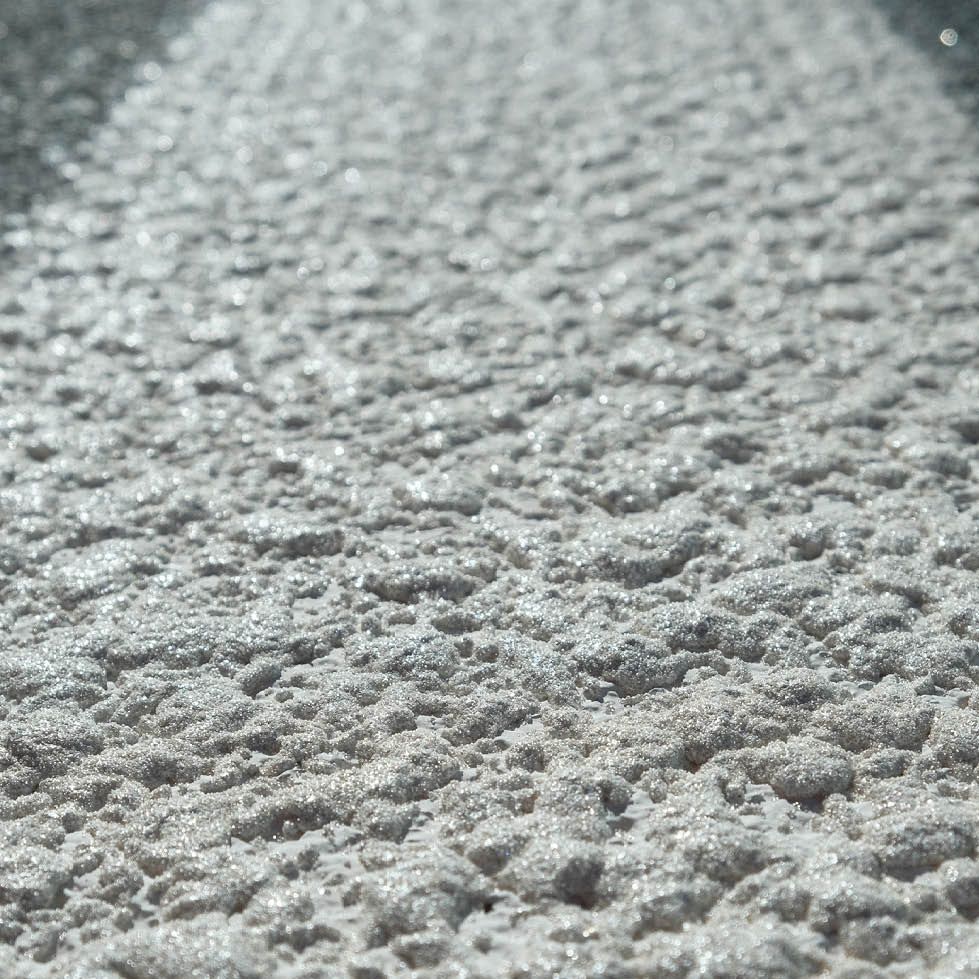

- High rainwater drainage capacity when used as an agglomerate structure
- Lower maintenance and life cycle costs thanks to excellent durability
- BASt-approved Type II marking with proven performance up to 8 million crossings
- Can be used on common substrates (bituminous surfaces and concrete roadways)
- Can be used as smooth, structured, and profiled markings
- Can be applied with 2K and 3K application equipment
Find more information here about:
- Container return
- Complaints
- Material consumption
- Handling different containers
RPA - Test Reports for SWARCOPLAST G601
Test report-no. | Layer thickness | Consumption | Drop-on material (DOM) | Traffic technological properties | ||
mm | Material | DOM | Identification (divergent identification possible - see relevant test report) | New condition | Used condition | |
kg/m² | kg/m² | |||||
Structure marking Regular agglomerates type II | ||||||
| 2022 1DK 07.13 | 1.5-3.0 | 2.7-2.8 | 0.50 | SWARCO SOLIDPLUS 100 300-850 T18 | **** | |
| 2022 1DK 07.14 | 1.5-3.0 | 2.7-2.8 | 0.50 | SWARCO SOLIDPLUS 50 | P7, S0, R5, RW6, Q5, T3* | P7, S0, R4, RW5, Q5 |
Irregular agglomerates type II | ||||||
| 2022 1DK 07.03 | 1.5-3.0 | 2.6-2.8 | 0.50 | SWARCO SOLIDPLUS 100 | P7*** | |
| 2022 1DK 07.04 | 1.5-3.0 | 2.6-2.8 | 0.50 | SWARCO SOLIDPLUS 50 300-850 T18 | P7*** | |
| 2024 1DK 12.11 | 1.5–3.0 | 2.2 – 2.8 | 0.50 | SWARCO SOLIDPLUS 100 | P7, S0, R5, RW6, Q5, T3* | P7, S0, R5, RW5, Q5 |
Plain marking | ||||||
Type II marking | ||||||
| 2024 1DK 13.16 | 3.0 | 5.55 | 0.50 | SWARCO SOLIDPLUS 100 425-1180 T18 MK30 | P7, S1, R5, RW5, Q5, T3* | P7, S1, R5, RW2, Q5 |
| *The specified drying time is a laboratory value and may vary depending on climatic conditions. **The actual material consumption depends on the application technique, the machine settings and the resulting actual application thickness, as well as any NSM added subsequently. *** Only a “Confirmation of testing of a marking system on the BASt (RPA) repeatability test bench in accordance with European standards” (EN 1436) is available. BASt confirmations are not listed in the BASt approval list. ****Only the BASt measurement table is available for information purposes. The BASt test specimen broke during the RPA run in 07/2022, so no BASt certificate could be issued. | ||||||
