NEMA TS 1 Controller Tester

A valuable tool for testing, troubleshooting, demonstrating, or burning-in a NEMA TS 1 traffic controllers in the shop, office or field

NEMA TS 1 Controller Tester A valuable tool for testing, troubleshooting, demonstrating, or burning-in a NEMA TS 1 traffic controllers in the shop, office or field

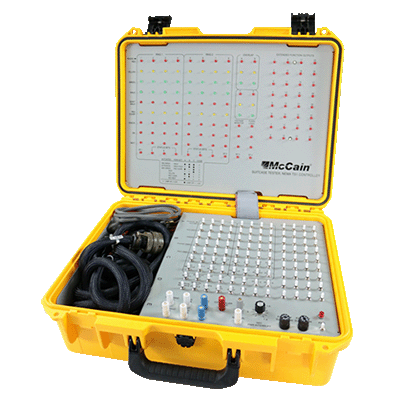

NEMA TS 1 Controller Testers are a valuable tool for testing, troubleshooting, demonstrating, or burning-in a NEMA TS 1 traffic controllers in the shop, office or field. The newly designed yellow plastic case improves tester durability and its ability to withstand water. Technicians can simulate any controller function on command for expedited troubleshooting.

  • Test and troubleshoot NEMA TS 1 controllers
  • Simulate controller functions to expedite troubleshooting
  • Ideal for field testing
  • Powered internally, no controller power is required

  • Tests all standard and extended NEMA controller functions
  • Extended function inputs (36)
  • Output displays (132)
  • Test points (9)
  • Power interrupt test adjustable from 0.1 to 1.1 seconds

    Dimensions19” W x 15” H x 7” D
    EnclosureHPX High-performance resin luggage style case
    Power120 VAC, 1 AMP
    Environment

    Operating Temperature: +20° C to +74° C

    Humidity: 0 to 95% (non-condensing)

    Weight23 lbs


      • Phase type display
