Lane Control Signs (LCS)

Provide lane status to en-route motorists through high-quality LED displays

Lane Control Signs (LCS) Provide lane status to en-route motorists through high-quality LED displays

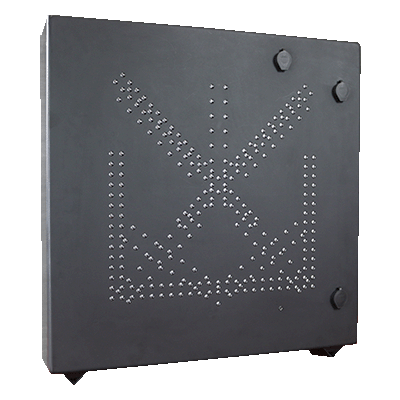

McCain’s Lane Control Signs (LCS) powered by SWARCO, provide lane status to en-route motorists through high-quality LED displays. Strategically placed, these signs improve overall traffic flow and commuter safety by informing drivers of lane closures and directing traffic to open lanes. LCS applications are commonly used in Active Traffic Management corridors, airport entrances, toll lanes, and parking garages.

  • Directs or blocks traffic with directional arrows (straight, right, or left) and an “X”
  • Improves visibility from any angle with unrivaled contrast ratios
  • Emits little to no heat, eliminating the need for additional cooling, ventilation, and/or defogging equipment
  • Boasts low total cost of ownership due to reduced energy consumption and minimal maintenance costs
  • Eliminates glare caused by sunlight or headlights
  • Meets or exceeds NEC and NEMA standards

  • NEMA TS 4 standards compliant
  • Real-time sign diagnostics and full pixel feedback
  • Internally housed controller
  • Message control via override, local, or central schedule
  • Number of colors include mono, bi-color, and tri-color
  • Watertight precision optical lens

    Dimensions27" W x 27" H x 6" D
    MaterialMarine-grade aluminum
    FinishPowder coated or natural
    AccessFront
    Mounting"Z" bars, "C" channels or pipe clamps
    Others available on request
    Display Typelimited matrix
    Luminous IntensityMin: 9,200 cd/m2
    Max: 16,509 cd/m2
    LED TypeSingle color: amber, white, red, green, blue
    Power Supply120 VAC single phase
    48 VDC internal chain driver
    EnvironmentOperating Temperature: -44° C to 85° C
    Humidity: 0 to 99% (condensing)
    VentilationPassive ventilation
    Weight± 39 lbs


      • NTCIP 1203 compliant communications
      • Ground controller configurable
      • Contact closure
