SWARCOPLAST ECO D480
Cold Plastic

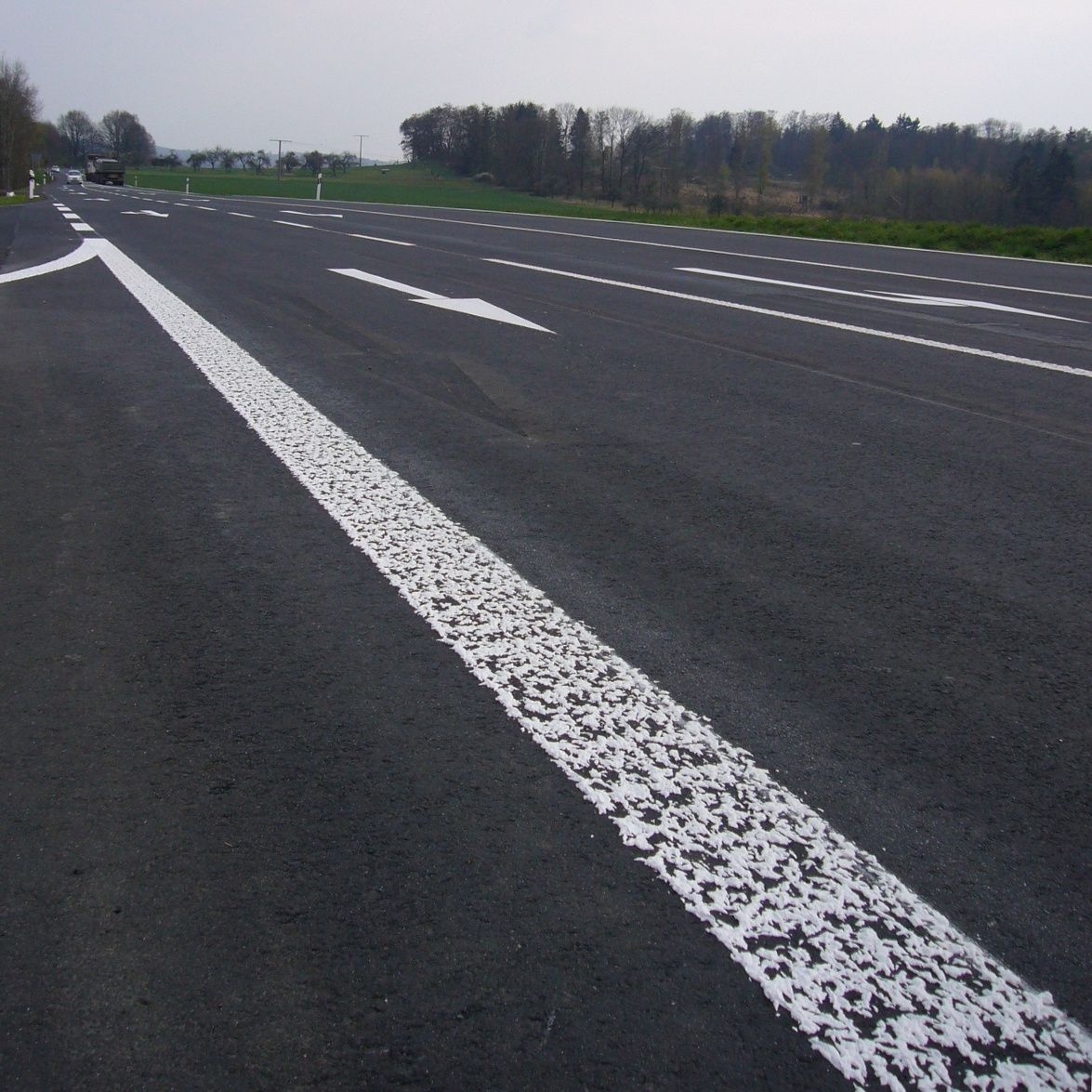

SWARCOPLAST ECO D480 is a solvent-free, multi-component reactive system for professional road marking applications. One formulation supports a wide range of marking types – from plain, structured and profiled markings to regular and irregular agglomerate markings. The material is suitable for bituminous surfaces as well as concrete surfaces when used with the appropriate primer.
- Plain: SWARCOPLAST ECO D480 plain can be applied as conventional marking and as rain safety marking with enhanced wet night visibility.

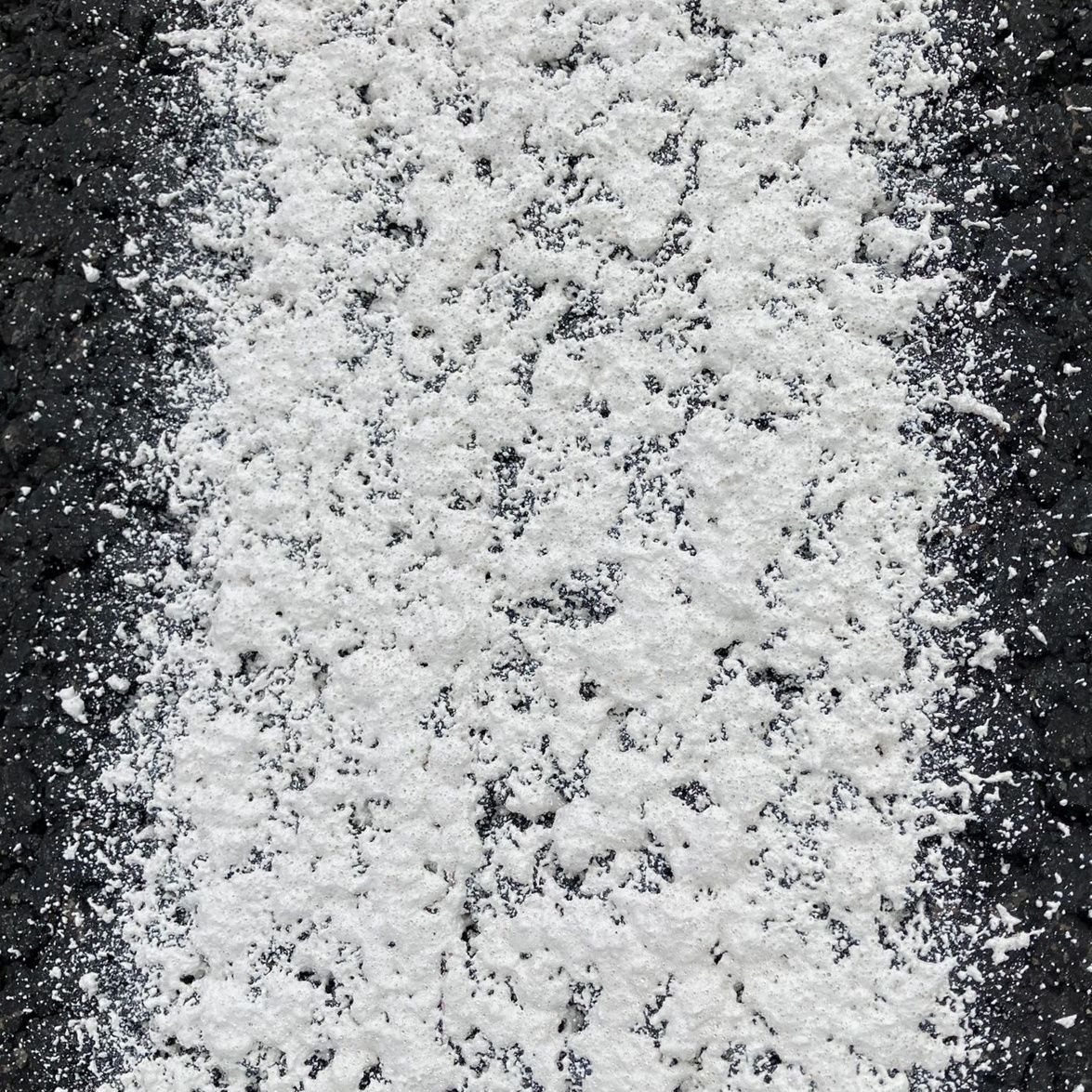

- Structure: SWARCOPLAST ECO D480 is exclusively applied as agglomerate-type rain safety marking with enhanced wet night visibility. It is characterized by an open structure (agglomerates) with excellent drain effect and good resistance against snowploughs.
- Profile: It has been tested and approved on the turntable simulator at the German Road Institute (BASt) as type II marking.
RPA - Test Reports by BASt for SWARCOPLAST ECO D480
Test report-no.
| Layer thickness | Consumption | Drop-on material (DOM) | Traffic technological properties | ||
| mm
| Material | DOM | Identification (divergent identification possible - see relevant test report)
| New condition
| Used condition
|
kg/m² | kg/m² | |||||
Structure Markings / Regular Agglomerates | ||||||
1.5-3.0 | 2.5-2.8 | 0.50 | SWARCOFLEX 100-600 T18 | P7, S0, R5, RW6, Q5, T3* | P7, S0, R5, RW5, Q5 | |
Structure markings / Irregular Agglomerates | ||||||
1.5-3.0 | 2.5-2.8 | 0.50 | SWARCOFLEX 100-600 T18 | P7* |
| |
1.5-3.0 | 2.2 | 0.50 | SWARCO SOLIDPLUS 100 300- 850 T18 | P7, S0, R5, RW6, Q5, T3* | P7, S0, R5, RW4, Q5 | |
*only confirmation of testing the marking systems available
