SWARCO CILANE


The LED traffic signal SWARCO CILANE is a variant of the COMBIA traffic light family, which is not only made of UV-stabilized polycarbonate, but has also powder coated aluminum cover and rear panel. This combination of polycarbonate and aluminium gives this signal head an elegant, shapely design. Either the modern one-point or the classical two-point fixing are possible for CILANE. Smart additional functions can be integrated individually and turn this traffic signal into an intelligent system.



Prepared for
Smart functions


C-ITS
Ready


Attractive
Design


Easy
Maintenance

  • the smart features “SafeLight, AirDec, PedCom“ can be installed individually
  • easily extendable and prepared for smart additional functions (automated driving, C-ITS etc.)
  • optional: integrated acoustic unit “Sound“ in half aspect
  • shapely design – polycarbonate and aluminium
  • individual colour combinations – aluminium rear design panel and cover
  • faster maintenance: opening angle of the front doors to the left or right up to 175° at 200 mm and up to 150° at 300 mm
  • reduced assembly time by simply and quickly opening the aspects
  • simple type of clamping technology for LED cabling
  • elastic, plug-in visors – optionally fixable with screws
  • easy cable routing between the aspects
  • modern one-point or classic two-point fixing
  • mounting of backing boards is prepared
  • additional installations can be integrated in the housing


Technical Details


Material

UV-stabilized polycarbonate,
powder coated aluminum: cover and rear panel

Diameters,
Mounting
200 / 300 mm | aspects: 1-5,
vertical or horizontal
Smart featuresintegrated as 1/2 aspect version for 200 mm,
on top and / or bottom
LED-Optic200 / 300 mm LED modules FUTURLED
Two-point fixing
  •  105 mm brackets (Aluminium)
    (optional: 183 / 240 mm)
  • fixing for ironflats or on cantilever bracket
  • M12 / M20 mounting
One-point fixing
  • on top of a pole 42,5 / 64 / 76 mm
  • DSI bracket
Backing boardsfixing by means of domes on the back of the housing
Front colourRAL 9005 black
Colours of rear design panel and
cover
RAL 7032 light grey
RAL 9005 black
RAL 9006 white-aluminum
more colours on request
CertificatesEN12368, CE, Protection classification II

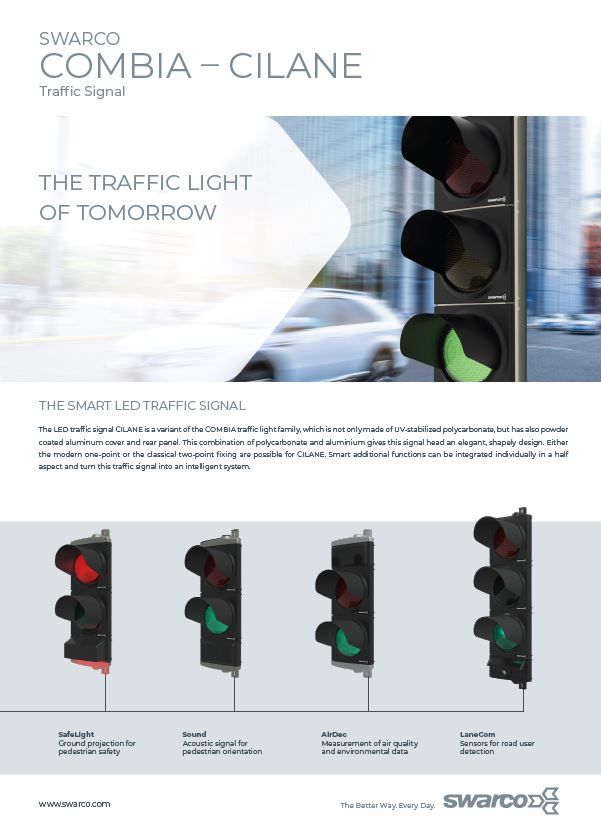

Downloads
